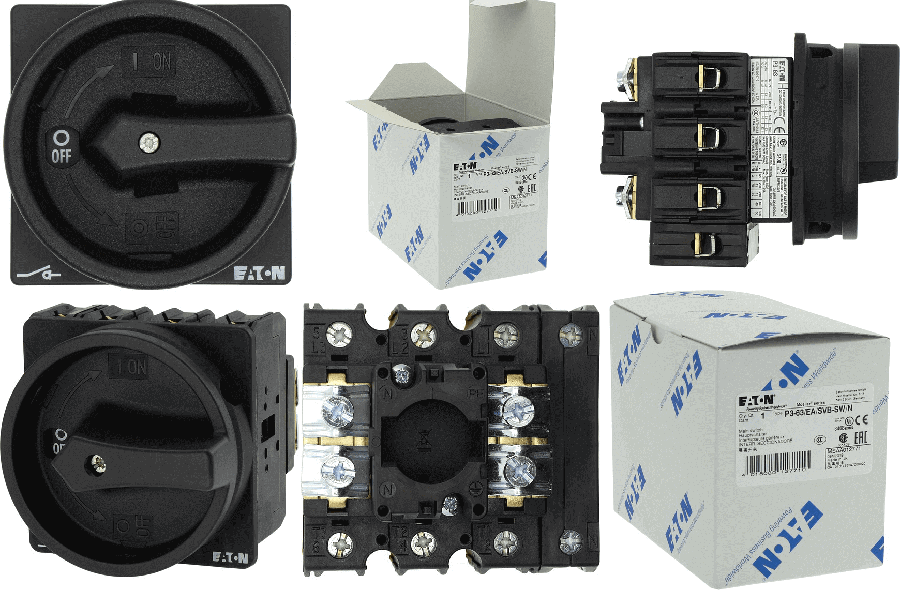

P3-63/EA/SVB-SW/N-主開關Eaton Moeller
Product Specification
| Product range | Main switch |
| Part group reference | P3 |
| Function | STOP function |
| Datasheet | |
| Information about equipment supplied | auxiliary contact fitted by user |
| Number of poles | 3 pole + N |
| CAD | .step |
| Terminal screw | M5 |
| operating voltage | 690V |
| operating current | 63A |

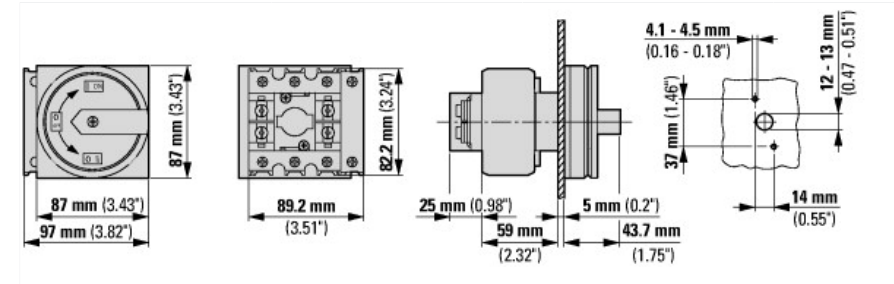

產品尺寸
| Symbol | Stable positions description | Inom[A] | Pmax[kW] | Mounting |
| T0-1-8200/EA/SVB | OFF-ON | 20 | 6.5 | for building in |
| T3-1-8200/EA/SVB | OFF-ON | 32 | 13 | for building in |
| T0-1-8200/I1/SVB | OFF-ON | 20 | 6.5 | in housing |
| T3-1-8200/I2/SVB | OFF-ON | 32 | 13 | in housing |
| T5B-1-8200/I4/SVB | OFF-ON | 63 | 22 | in housing |
| T0-1-102/EA/SVB | OFF-ON | 20 | 6.5 | for building in |
| T3-1-102/EA/SVB | OFF-ON | 32 | 13 | for building in |
| T5B-1-102/EA/SVB | OFF-ON | 63 | 22 | for building in |
| T5-1-102/EA/SVB | OFF-ON | 100 | 30 | for building in |
| T0-1-102/I1/SVB | OFF-ON | 20 | 6.5 | in housing |
| T3-1-102/I2/SVB | OFF-ON | 32 | 13 | in housing |
| T5B-1-102/I4/SVB | OFF-ON | 63 | 22 | in housing |
| T5-1-102/I5/SVB | OFF-ON | 100 | 30 | in housing |
| T0-2-1/EA/SVB | OFF-ON | 20 | 6.5 | for building in |
| T0-2-1/I1/SVB | OFF-ON | 20 | 6.5 | in housing |
| P1-25/EA/SVB | OFF-ON | 25 | 13 | for building in |
| P1-32/EA/SVB | OFF-ON | 32 | 15 | for building in |
| P3-63/EA/SVB | OFF-ON | 63 | 37 | for building in |
| P5-125/EA/SVB | OFF-ON | 125 | 45 | for building in |
| P3-100/EA/SVB | OFF-ON | 100 | 50 | for building in |
| P5-160/EA/SVB | OFF-ON | 160 | 55 | for building in |
| P5-250/EA/SVB | OFF-ON | 250 | 90 | for building in |
| P5-315/EA/SVB | OFF-ON | 315 | 110 | for building in |
| P1-25/I2/SVB | OFF-ON | 25 | 13 | in housing |
| P1-25/I2/SVB/HI11 | OFF-ON | 25 | 13 | in housing |
| P1-32/I2/SVB | OFF-ON | 32 | 15 | in housing |
| P3-63/I4/SVB | OFF-ON | 63 | 37 | in housing |
| P3-100/I5/SVB | OFF-ON | 100 | 50 | in housing |
| T0-2-8900/EA/SVB | OFF-ON | 20 | 6.5 | for building in |
| T0-2-8900/I1/SVB | OFF-ON | 20 | 6.5 | in housing |
| P1-25/EA/SVB/N | OFF-ON | 25 | 13 | for building in |
| P1-32/EA/SVB/N | OFF-ON | 32 | 15 | for building in |
| P3-63/EA/SVB/N | OFF-ON | 63 | 37 | for building in |
| P5-125/EA/SVB/N | OFF-ON | 125 | 45 | for building in |
| P3-100/I5/SVB/N | OFF-ON | 100 | 50 | for building in |
| P5-160/EA/SVB/N | OFF-ON | 160 | 55 | for building in |
| P5-250/EA/SVB/N | OFF-ON | 250 | 90 | for building in |
| P5-315/EA/SVB/N | OFF-ON | 315 | 110 | for building in |
| P1-25/I2/SVB/N | OFF-ON | 25 | 13 | in housing |
| P1-32/I2/SVB/N | OFF-ON | 32 | 15 | in housing |
| P3-63/I4/SVB/N | OFF-ON | 63 | 37 | in housing |
| P3-100/EA/SVB/N | OFF-ON | 100 | 50 | in housing |
