LPN-RK-15SP Bussmann Low Peak Dual Element Class RK1 Fuse
| 品名 | Eaton Bussmann系列LPN-RK級RK1保險絲 |
| Catolog編號 | LPN-RK-15SP |
| 額定電流 | 15A |
| 額定電壓 | 250VAC, 125VDC |
| 數據表 | |
| 產品長度 | 2 in |
| 產品直徑 | 0.56 in |
| 產品重量 | 0.5 lb |
| Class | Time Delay |
| 電壓型 | AC, DC |
| Class | Class RK1 Fuse |
| 分斷能力 | ? 300 kA RMS Sym. ? 100 kA DC |
| 3D Model; CAD | stp |
| 連接 | 卡套端x卡套端 |
| 機構信息 | UL認證，指南JDDZ，文件E4273，CSA認證，RK1級，符合CSA C22.2，編號248.12，1422-02級，文件53787，CE |
目錄編號（安培）
| LPN-RK-1/10SP | LPN-RK-2/10SP | LPN-RK-3/10SP | LPN-RK-4/10SP | LPN-RK-15/100SP |
| LPN-RK-6/10SP | LPN-RK-8/10SP | LPN-RK-1SP | LPN-RK-1-1/8SP | LPN-RK-1-1/4SP |
| LPN-RK-1-4/10SP | LPN-RK-1-6/10SP | LPN-RK-1-8/10SP | LPN-RK-2SP | LPN-RK-2-1/4SP |
| LPN-RK-2-1/2SP | LPN-RK-2-8/10SP | LPN-RK-3SP | LPN-RK-3-2/10SP | LPN-RK-3-1/2SP |
| LPN-RK-4SP | LPN-RK-4-1/2SP | LPN-RK-5SP | LPN-RK-5-6/10SP | LPN-RK-6SP |
| LPN-RK-6-1/4SP | LPN-RK-8SP | LPN-RK-9SP | LPN-RK-10SP | LPN-RK-12SP |
| LPN-RK-15SP | LPN-RK-17-1/2SP | LPN-RK-20SP | LPN-RK-25SP | LPN-RK-30SP |
| LPN-RK-35SP | LPN-RK-40SP | LPN-RK-45SP | LPN-RK-50SP | LPN-RK-60SP |
| LPN-RK-70SP | LPN-RK-80SP | LPN-RK-90SP | LPN-RK-100SP | LPN-RK-110SP |
| LPN-RK-125SP | LPN-RK-150SP | LPN-RK-175SP | LPN-RK-200SP | LPN-RK-225SP |
| LPN-RK-250SP | LPN-RK-300SP | LPN-RK-350SP | LPN-RK-400SP | LPN-RK-450SP |
| LPN-RK-500SP | LPN-RK-600SP |
Catalog no. (amps)
| LPN-RK-1/10SP | LPN-RK-2/10SP | LPN-RK-3/10SP | LPN-RK-4/10SP | LPN-RK-15/100SP |
| LPN-RK-6/10SP | LPN-RK-8/10SP | LPN-RK-1SP | LPN-RK-1-1/8SP | LPN-RK-1-1/4SP |
| LPN-RK-1-4/10SP | LPN-RK-1-6/10SP | LPN-RK-1-8/10SP | LPN-RK-2SP | LPN-RK-2-1/4SP |
| LPN-RK-2-1/2SP | LPN-RK-2-8/10SP | LPN-RK-3SP | LPN-RK-3-2/10SP | LPN-RK-3-1/2SP |
| LPN-RK-4SP | LPN-RK-4-1/2SP | LPN-RK-5SP | LPN-RK-5-6/10SP | LPN-RK-6SP |
| LPN-RK-6-1/4SP | LPN-RK-8SP | LPN-RK-9SP | LPN-RK-10SP | LPN-RK-12SP |
| LPN-RK-15SP | LPN-RK-17-1/2SP | LPN-RK-20SP | LPN-RK-25SP | LPN-RK-30SP |
| LPN-RK-35SP | LPN-RK-40SP | LPN-RK-45SP | LPN-RK-50SP | LPN-RK-60SP |
| LPN-RK-70SP | LPN-RK-80SP | LPN-RK-90SP | LPN-RK-100SP | LPN-RK-110SP |
| LPN-RK-125SP | LPN-RK-150SP | LPN-RK-175SP | LPN-RK-200SP | LPN-RK-225SP |
| LPN-RK-250SP | LPN-RK-300SP | LPN-RK-350SP | LPN-RK-400SP | LPN-RK-450SP |
| LPN-RK-500SP | LPN-RK-600SP |
LPN-RK保險絲典型應用
?大型配電盤
?電源配電板
?電機控制中心
?機械隔離開關

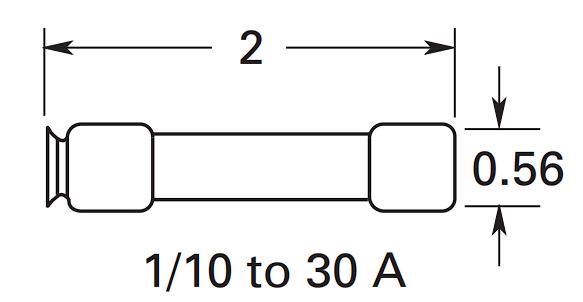

LPN-RK保險絲尺寸：-英寸
特征
?獨立的過載和短路元件為與RK1電流限制相關的高涌入負載提供了時間延遲，2:1的選擇性協調比（在低峰值保險絲系列中）有助于防止大范圍停電
?RK1、RK5和H類保險絲的庫存整合，以減少SKU投資并最大限度地減少保險絲誤用的可能性
?300 kA RMS對稱中斷額定值為所有電氣系統（無論大小）提供足夠的額定值而不會過時
?絕緣端蓋減少了接觸帶電部件的風險，并將氣隙延伸至相鄰安裝保險絲的葉片之間的距離或外殼
